High Production Supply Concrete Precast Manhole Well Ring Machine
Productdetails:
| Plaats van herkomst: | China |
| Merknaam: | TONTEN |
| Modelnummer: | TT-WR |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1 Instellen |
|---|---|
| Prijs: | Onderhandelbaar |
| Verpakking Details: | Houten Verpakkende Doos |
| Levertijd: | 10-15 dagen |
| Betalingscondities: | T/T |
| Levering vermogen: | 1-2 sets ongeveer 15 dagen |
|
Gedetailleerde informatie |
|||
| Haven: | QingDao/ShangHai/TianJin/Dalian/Shenzhen | Specificatie: | 900*700*1100 mm |
|---|---|---|---|
| Voordeel: | Hoge efficiëntie | Verkooppunten: | Gemakkelijk aan verrichting |
| Sollicitatie: | Gebouwbouw, wegbouw | Steenformaat: | Standaard of op maat |
| Exploitant: | 2-3 mensen | Grondstoffen: | Cement/Beton/Vliegas |
Productomschrijving

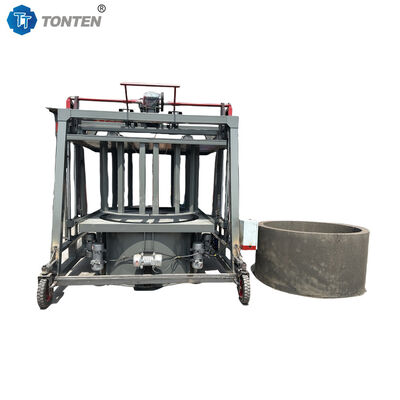

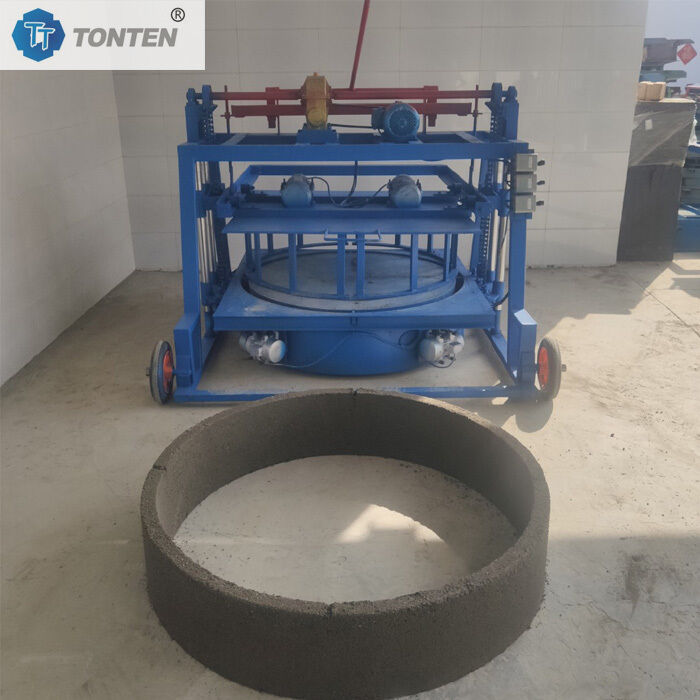

High Production Supply Concrete Precast Manhole Well Ring Machine
This concrete precast manhole ring machine is constructed with high-strength steel frame, which has strong load-bearing capacity and good stability, ensuring long-term reliable operation.
Adopting advanced vibration molding technology, it ensures dense structure, high compressive strength and good durability of the finished well rings, which are widely used in municipal engineering, rural water supply and drainage, sewage treatment and other projects. The machine is easy to operate and maintain, suitable for both small workshops and large-scale production lines, providing a cost-effective solution for well ring manufacturing.
Working Principle
The working process is divided into four key steps: feeding, vibration compaction, forming and demolding. When working, the operator puts the proportioned concrete into the feeding hopper, then, the vibration motor drives the mold to vibrate at high frequency, so that the concrete is fully compacted. After the concrete is initially set and formed, the mold is opened manually or automatically, and the finished product is taken out.
Concrete Precast Manhole Well Ring Machine Main Parameters
| Items | Main Parameters |
| Brick machine size (mm) | 2200 × 2200 × 3200 |
| Net weight | 1700KG |
| Packaging size (mm) | 3250 × 2250 × 2250 |
| Packaging weight | 1850KG |
| Vibration motor power | 1.5KW × 4+2.2KW |
Concrete Precast Manhole Well Ring Machine Advantages
①Robust & Durable Structure
Built with a high-strength steel frame, the machine features good load-bearing capacity and stability.
②User-Friendly Operation
The machine comes with a simple operation interface.
③Flexible Operation Modes
Supporting both manual and semi-automatic operation modes, it can flexibly adapt to different production scales.
④Low Maintenance & High Sealing
Its mold adopts integral casting technology with superior sealing performance to prevent concrete leakage during forming; the built-in self-cleaning system simplifies daily maintenance and reduces labor intensity.
Concrete Precast Manhole Well Ring Machine Applications
